ISO 9001 Scattering coating prodcution line
Quick Details
Condition: New
Automatic Grade: Automatic
Place of Origin: China (Mainland)
Brand Name: ZHUOQI
Model Number: Customization
Voltage: 380V 50HZ
Power(W): 24~48kw
Dimension(L*W*H): 2500*3000*1450mm
Weight: 3000-5000kgs
Certification: ISO9001
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details: | SPARE PARTS PACKED IN WOODEN CASE |
---|
Delivery Detail: | 30 DAYS |
---|
Product Application
1. Width of the finished product: 1200mm
2. Output of product: 1400-1500m/h
3. Working speed: 10-80 m/min
4. Temperature control: use SCR imported from Japan with three sets thyristor
5. Temperature of drying room: 50~300℃
6. The max electric heating power: 60KW
7. Cooling way of fabric-out: Cold water roller
8. Main transmission way: Frequency transducer control with reducer
9. Powder point head: Frequency transducer control with 0.55KW reducer
10. Fabric-out way: Upper chrome plating roller , down rubber roller, air pressure type with automatic counting meter, frequency transducer control with 1.5KW motor.
11. Beater: Frequency transducer control with 2.2KW motor.
12. Size of the Machine: Length12m×Width1.2m×Height1.8m
Main material:hdpe,ldpe(,copa,eval,pu,)eva
Machine Parts
Name: Flatting and winding
Original: China
Put the fabrci to flatting machine,prepare to produce.
Main Features

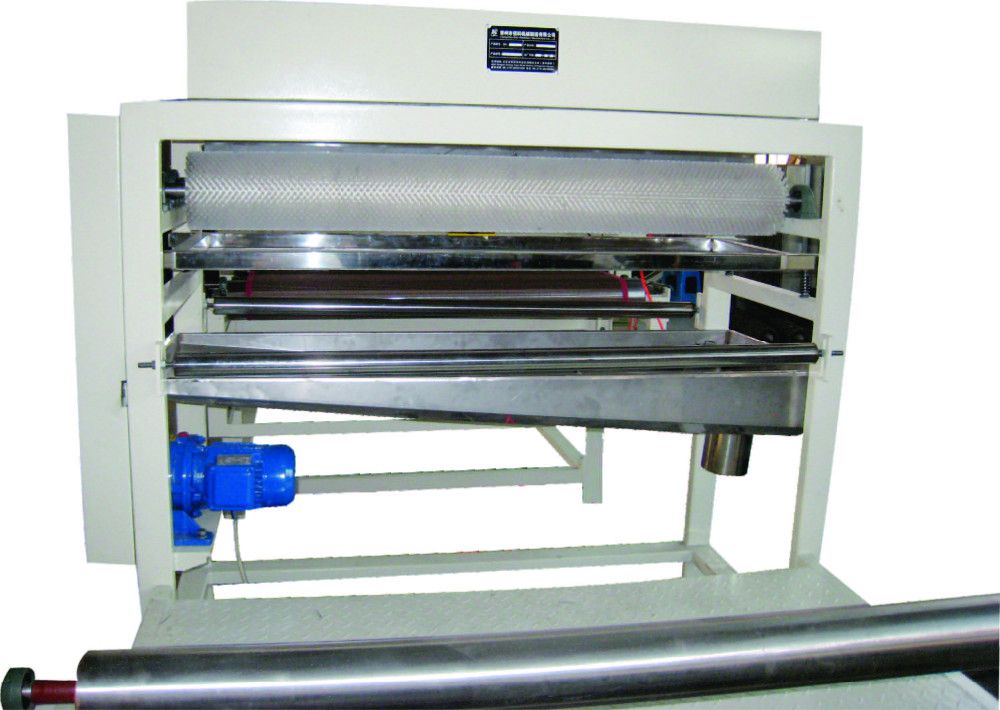

Name: Scattering head
Original: China
Use scattering head machine to scatter the powder ,make sure powder scatter evenly.
Machine Parts
Name:Oven
Original: China
6m Oven use high temperature resistance Teflon net automatic edge to edge.Dry the fabric.strick powder to fabric.
Main Features
Name: Winding machine
Original: China
Roll the fabric.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging |
| 100(L) * 70(W) * 70(D) |
| 3T |
| The normal package is wooden box(Size: 100L*70W*70H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
