ISO 9001 Chemical bond non woven interlining machine

Quick Details

  • Condition: New

  • Automatic Grade: Semi-Automatic

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: ZHUOQI

  • Model Number: JZ1500,JZ2000,JZ2500

  • Voltage: 380V

  • Power(W): 24~48kw

  • Dimension(L*W*H):21000*11000*3500mm(L*W*H)

  • Weight: 25000kg-30000kgs

  • Certification: ISO9001

  • Warranty: 1 Year

  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details:NUDE PACKING FOR SINGLE MACHINE,WOODEN CASE FOR SPARE PARTS
Delivery Detail:100DAYS
Product Description

Product Application

Chemical bond interlining production line used for Garments.it is from 1.5m-2.5m width,the weight is from 20gsm-100gsm.the boiler should be prepared by buyer.

Specifications

1. Finished product: chemical-bonded fabric
2. Product weight: 20-60 g/m2
3. Working speed: 8-40 m/min
4. Width of the finished product 1200mm
5. Raw material: 1.5-2.5D,38-51mm,First grade polyester fiber and acrylate
6. Heating method: Steam heat up (1T steam Boiler, the buyer should bear the cost)
7. Installation power for main machines: 45kw
8. Size of the Machine: Length21000×Width11000×Height3500mm

Certifications
Detailed Images

Machine Parts

Name: Opener

Original:China

1.1. Working width: 1000mm
1.2. Capacity: 80-100kg/h
1.3. Installation power: 4.77kw
1.4. Opening cylinder is of card wire roller type

Name: Feeder
Original: China
2.1. Working width: 1200mm
2.2. Capacity: 80-100kg/h
2.3. Installation power: 1.12kw
2.4. Exhausting gas is of web cage structure, volume of the storaged web is controlled consecutively by the photo electronic switch
2.5. Photo electronic switch control the inclining lattice, feed in the raw material evenly by vibrating method

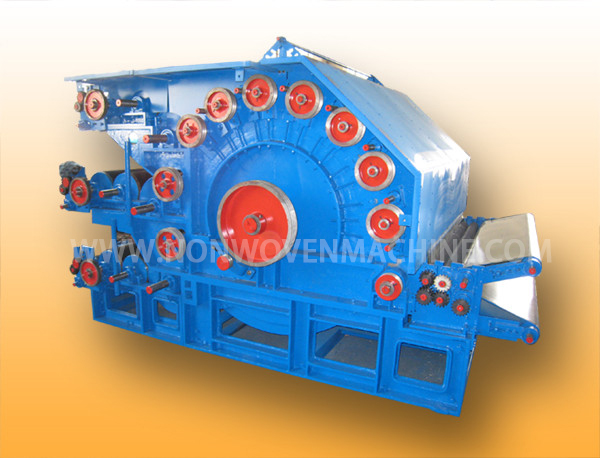

Name: Pre cading machine
Original: China
3.1. Working width: 1500mm
3.2. Stripping method: roller stripping
3.3. Carding capacity: 75 kg/h
3.4. Installation power: 6.05kw
3.5. Cylinder diameter: Φ850mm; rotating speed: 0~500rpm, adjustable

Name: Cross lapper
Original: China
4.1. Web in lattice width: 1700mm.( made of artificial leather) web out lattice width: 1700mm.( made of artificial leather)
4.2. Transmission lattice motor: 1.5 KW, frequency drive
to-and-from lattice motor: 0.75KW, frequency drive
4.3. web-out lattice are consectively driven by the feed-in lattice of main carding machine

Name: Cross lapper
Original: China  5.1. Working width: 1500mm
5.2. Stripping method: roller stripping
5.3. Carding capacity: 60kg/h
5.4. Installation power: 14KW
5.5. Cylinder diameter: Φ1250mm;rotating speed: 0-500rpm adjustable



Name: Edge cutting

Original:China  6.1. Up and down cutter is adjustable, width of the cut web from 1.2-1.5m
6.2. Air sucking blower: 2.2 KW


Name:Dipping machine

Original:China 7.1 Machine Width: 1500mm
7.2 Grouting Rolling using 240mm rubber rolling, pneumatic presser
7.3 Transmission firing by motivated by into clothing machine
7.4 Pumping device: 1 pump barrel, 1 plasm transfer pump, 1 blender





Name:Steam or thermo oil type Drying Cylinder:
Original:China

8.1 Machine Width: 1500mm
8.2 14 Stainless Steel steam roll, 10 with Teflon coating
8.3 Heating Method: heating with steam, the tube connecting the drying cylinders and the pipes beside the dryer prepared by the manufacturer. The air compressor should be prepared by the buyer
8.4 Driving Motor: 5.5kw. Frequency speed control

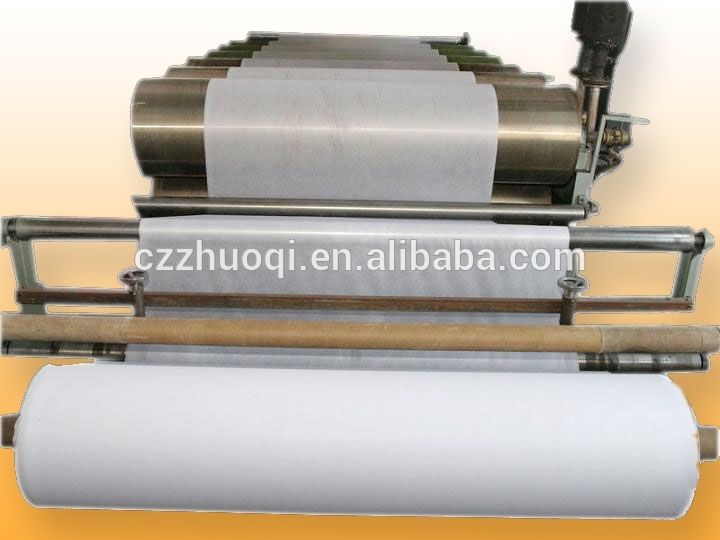

Name:Semi or full Automatic Winding Machine

Original:China

9.1. Working width: 1400mm
9.2. Maximum roller diameter: 800mm

9.3. Automatic counting meter: manually tear off the interlining

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
100(L) * 70 (W) * 70(D)
Total Weight
18-20T
Packaging Details
The normal package is wooden box(Size: 100L*70W*70H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
100(L) * 70 (W) * 70(D)
Total Weight
18-20T
Packaging Details
The normal package is wooden box(Size:100 L*70W*70H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
