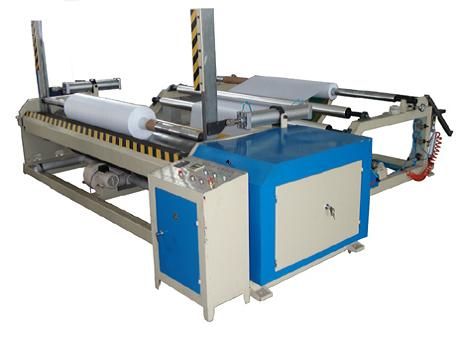

WDJ Nonwoven Fabric Cutting and Rewinding Machine

1. Practical scopes:2500mm breadth, effective work breadth 2400mm.
2. Processings quotas: 14~150g/m2 nonwoven fabrics
3. Raw materials volumes diameter: Phi 1000mm.
4. Finished products volumes diameter: Phi 1000mm (special specificationminute cuts treats decides).
5. Equipment structures: Wall plate and frame posture.
6. Duplicate windings up roller are the steel roller, stick theadhesive tape roll.

Suitable for the slitting and re-winding of various non-woven.
-Scissors knife cutting system, cut edge is very smooth. Machine can eb run at 250M/min. Without any abnormal nose.
-With center supported roll loading and surface winding design for take-up motion, tension can be automatically detected and controlled.
-With special design, machine can be used to process bulky non-woven.
-Air cylinder operated knife loading and unloading system, no damage to the knife, roll change is very simple and easy.
-Various type of machine for processing different material of n0n-woven are ready for your selection.
