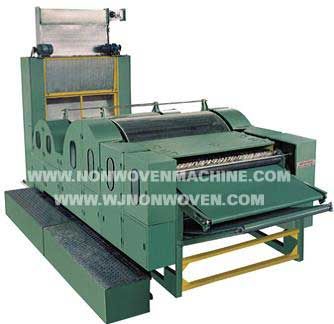

Double-cylinder Double-doffer Carding Machine
Purpose and characteristics: It is suitable for combing of 1.5-20D×38-65mm artificial fibers. Double-cylinder high-speed combing makes fiber fully combed and the mesh more even. Feeding roller is driven by frequency conversion and it is equipped with anti-metal protection device.
Main specifications:
Machine width: 1550mm, 2000mm, 2300mm, and 2500mm
Primary cylinder: φ850mm
Main cylinder: φ1230mm
Middle doffer: φ635mm
Output doffer: φ492mm
Output speed: 20-50m/min
Cotton stripping: roller
Power: 25kw
