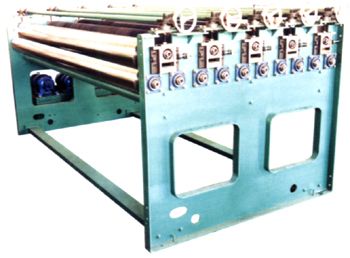

Model WFO104 Drafter

Applications and features:

It is suitable to make the cross and fold fabric web stretched step by step, transform the direction of fabric, and improve intensity ratio of fabric in horizontal and vertical.
The working rolls are divided into five groups, each group has three rolls, which is driven independently with the application of frequency converter regulation. The adjustment of draft ratio is easy and reliable, the surface of rolls is covered special metallic card clothing.

Main specifications:
Machine width:2000mm.3000mm.4000mm
Production fixed weight:35-150g/m2
Draft ratio:1-2.6
Working speed:3-24m/min
Total power:3kw(WF0104-300)
Overall size:5100*4000*1400mm(WF0104-300)
